    Trickling Filter International Cooling Tower Fill Cooling Tower Parts

    Ask Lasest Price
    Brand Name : XL
    Model Number : XL-610-VF
    Certification : SGS
    Price : $1.2-2/square meters
    Payment Terms : Western Union, T/T, MoneyGram, D/P, D/A, L/C
    Supply Ability : 1000m2/per pay
    Delivery Time : 10 working days
    MOQ : 10 square meters
    • Product Details
    • Company Profile

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts

    High quality water cooling tower fill / trickling filter for cooling tower, trickle cooling film


    Description:


    Cooling Tower PVC Fill, also called cooling tower infill film media. It is one of the most important components in cooling tower. It’s function is increase the exchange area of the gas and working fluid in order to achieve the requested cooling requirement. The working fluid was distributed onto the cooling tower PVC fill and spread into a thin film uniformly, by increasing the air-media interface and allowing waste heat to evaporate at an accelerated rate.


    The heat resistance is the main factor influencing the cooling efficiency for the cooling tower PVC fill. And the quality of the raw material used for producing cooling tower PVC fill will influence the cooling tower fill's service time. always adapt the high quality cooling tower PVC fill for the cooling tower.


    This type cooling tower PVC fill is designed for the factory-assem

    bled counterflow cooling towers.

    Specifications:


    Tech Date


    Sheet Width(mm)

    305/610mm

    Sheet Length

    1220/1830/2440mm/customized

    Thickness

    0.32-0.6mm/customized

    Sheet Spacing

    12/15/19/30mm

    Color

    grey/white/black

    Material

    PP/PVC/

    CPVC

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts

    Cooling Tower Fill Operating of Principle

    *Cooling towers reject heat from water-cooled systems to the atmosphere. Hot water from the system enters the cooling tower and is distributed over the fill (heat transfer surface). Air is induced or forced through the fill, causing a small portion of the water to evaporate. This evaporation removes heat from the remaining water, which is collected in the cold water basin and returned to the system to absorb more heat. Each cooling tower line, although operating under the same basic principle of operation, is arranged a little differently.


    *There are two main configurations of factory assembled cooling towers: crossflow and counterflow. In crossflow cooling towers, the water flows vertically down the fill as air flows horizontally across. In counterflow cooling towers, the water flows vertically down the fill as air flows vertically up.


    Related Cooling Tower Film Fill

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts


    Supply in industry

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts

    How do fills work in the cooling tower?

    Cooling towers reject heat from water-cooled system to the atmosphere. Hot water from the system enters the cooling tower and is distributed over the fill (heat transfer surface). Air is induced or forced through the fill, causing a small portion of the water to evaporate. This evaporation removes heat from the remaining water, which iscollected in the cold water basin and returned to the system to absorb more heat. Each cooling tower line, although operating under the same basic principle of operation, is arranged a little differently.

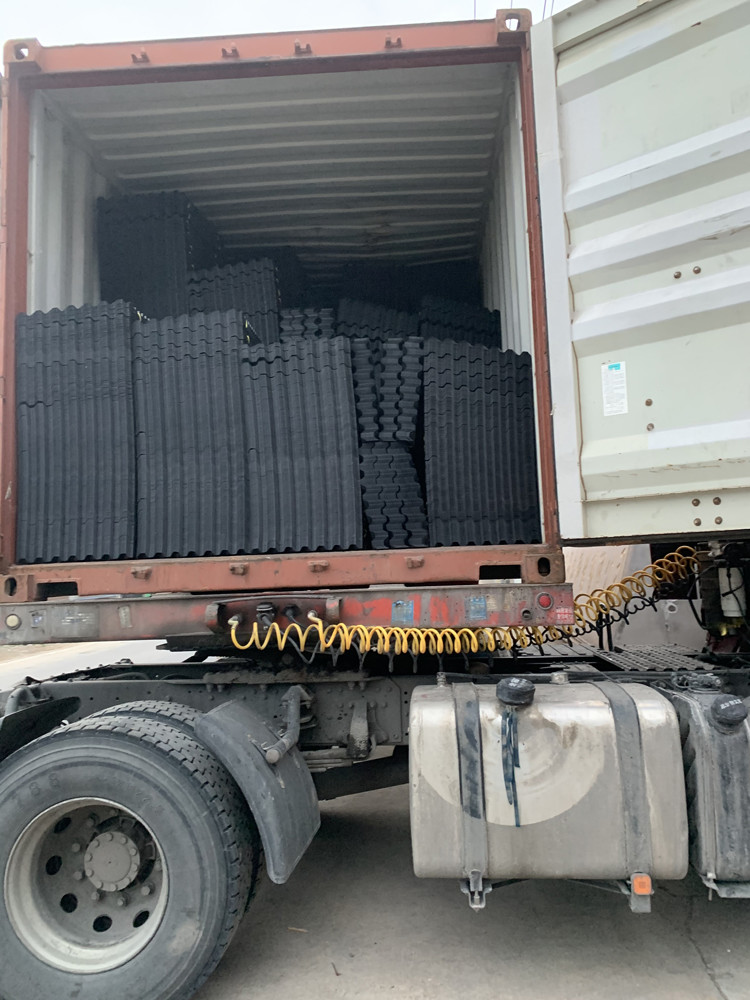

    PACKING AND DELIVERY


    Trickling Filter International Cooling Tower Fill Cooling Tower Parts


    Trickling Filter International Cooling Tower Fill Cooling Tower Parts


    Trickling Filter International Cooling Tower Fill Cooling Tower Parts


    Trickling Filter International Cooling Tower Fill Cooling Tower Parts


    Trickling Filter International Cooling Tower Fill Cooling Tower Parts


    About US

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts

    Trickling Filter International Cooling Tower Fill Cooling Tower Parts


    Trickling Filter International Cooling Tower Fill Cooling Tower Parts
